Walking Tractor Power Tiller 12HP

Product Categories

Bimo International Co.,Ltd

Contact Now

Name: Walking Tractor Power Tiller 12HP
Brand: BM
Price: 1 USD

Brand Name : BM

Model Number : 12HP

Certification : CE

Place of Origin : CHINA

MOQ : 10 PCS

Payment Terms : L/C, T/T

Delivery Time : 20 DAYS

Packaging Details : CARTONS OR WOODEN CASE

Contact Now

Engine
> Rated Net Power @ 2200 rpm	12hp
> Model	195N-2 Horizontal 4-strokes
> Max. Net Power @ 2000 rpm	12hp
> Bore	95mm
> Stroke	100mm
> Displacement	0.71L
> Net Torque	31.6N/m
> Peak Torque	33.8N/m
> Compression Ratio	17:1
> Fuel Consumption	<265.5gg/kw.h
> Oil Consumption	<4.00g/kw.h
> Speed	<800r/min
> Lubricating Way	Combined Pressure and Splashing
> Cooling System	Radiator and watertank
> Net Weight	120Kg
> Dimensions	760mm X 400mm X 600mm

Chassis
> Rated Traction	1700N
> Min Distance From The Ground	230mm
> Weight Of Chassis	180Kg
> Type Of Clutch	Double Friction Flat Of Constant Combination
> Type Of Steering Gear	Meshing Sleeve
> Type Of Brake	Cricoids, Inside Expansion
> Triangle Belt	2 Pieces B1850
> Capacity Of Lubrication Oil	4.5L
> Tread	740-800mm
> Dimensions	2130mm X 940mm X 1090mm

Attached Agricultrual Machines
> Anti-Skid Wheel
> Rotary Tiller
> Single Plough
> Trailer

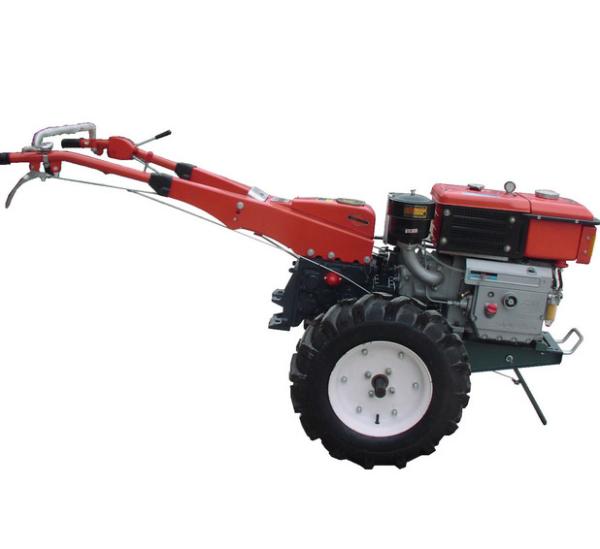

Walking Tractor Power Tiller 12HP Images
